AWS システム構成図
概要

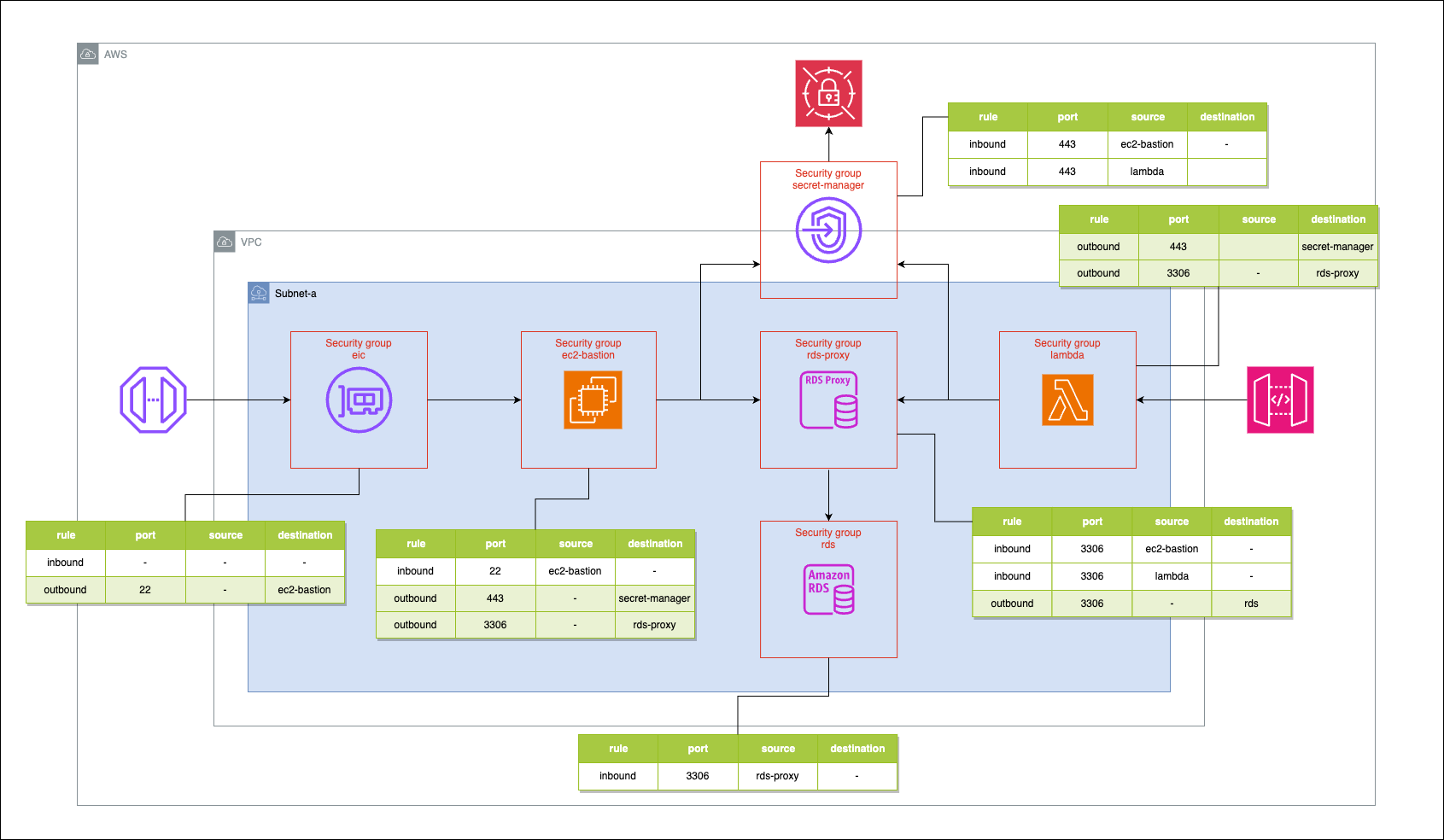

ネットワーク
セキュリティグループのルール
1. EIC Endpoint Security Group
| Type |
Resource |
From Port |
To Port |
Protocol |
Description |
| Outbound |
EC2 Bastion |
22 |
22 |
tcp |
Admin EC2 access |
2. EC2 Bastion Security Group
| Type |
Resource |
From Port |
To Port |
Protocol |
Description |
| Inbound |
EIC Endpoint |
22 |
22 |
tcp |
EIC endpoint access |
| Outbound |
DB Proxy |
3306 |
3306 |
tcp |
DB proxy access |
| Outbound |
Secret Manager |
443 |
443 |
tcp |
Secret Manager access |
3. DB Proxy Security Group
| Type |
Resource |
From Port |
To Port |
Protocol |
Description |
| Inbound |
EC2 Bastion |
3306 |
3306 |
tcp |
Admin traffic |
| Inbound |
Lambda |
3306 |
3306 |
tcp |
Lambdas |
| Outbound |
RDS |
3306 |
3306 |
tcp |
DB connections |
4. RDS Security Group
| Type |
Resource |
From Port |
To Port |
Protocol |
Description |
| Inbound |
DB Proxy |
3306 |
3306 |
tcp |
DB proxy connections |
5. Lambda Security Group
| Type |
Resource |
From Port |
To Port |
Protocol |
Description |
| Outbound |
Secret Manager |
443 |
443 |
tcp |
Secret Manager access |
| Outbound |
DB Proxy |
3306 |
3306 |
tcp |
DB access |
6. Secret Manager Security Group
| Type |
Resource |
From Port |
To Port |
Protocol |
Description |
| Inbound |
Lambda |
443 |
443 |
tcp |
Lambda access |
| Inbound |
EC2 Bastion |
443 |
443 |
tcp |
EC2 access |
